We provide high quality blasting accessories to improve mining operations.
Our focus is on safety, efficiency, and cutting-edge technology.
Join us in revolutionising the mining industry with our reliable products.

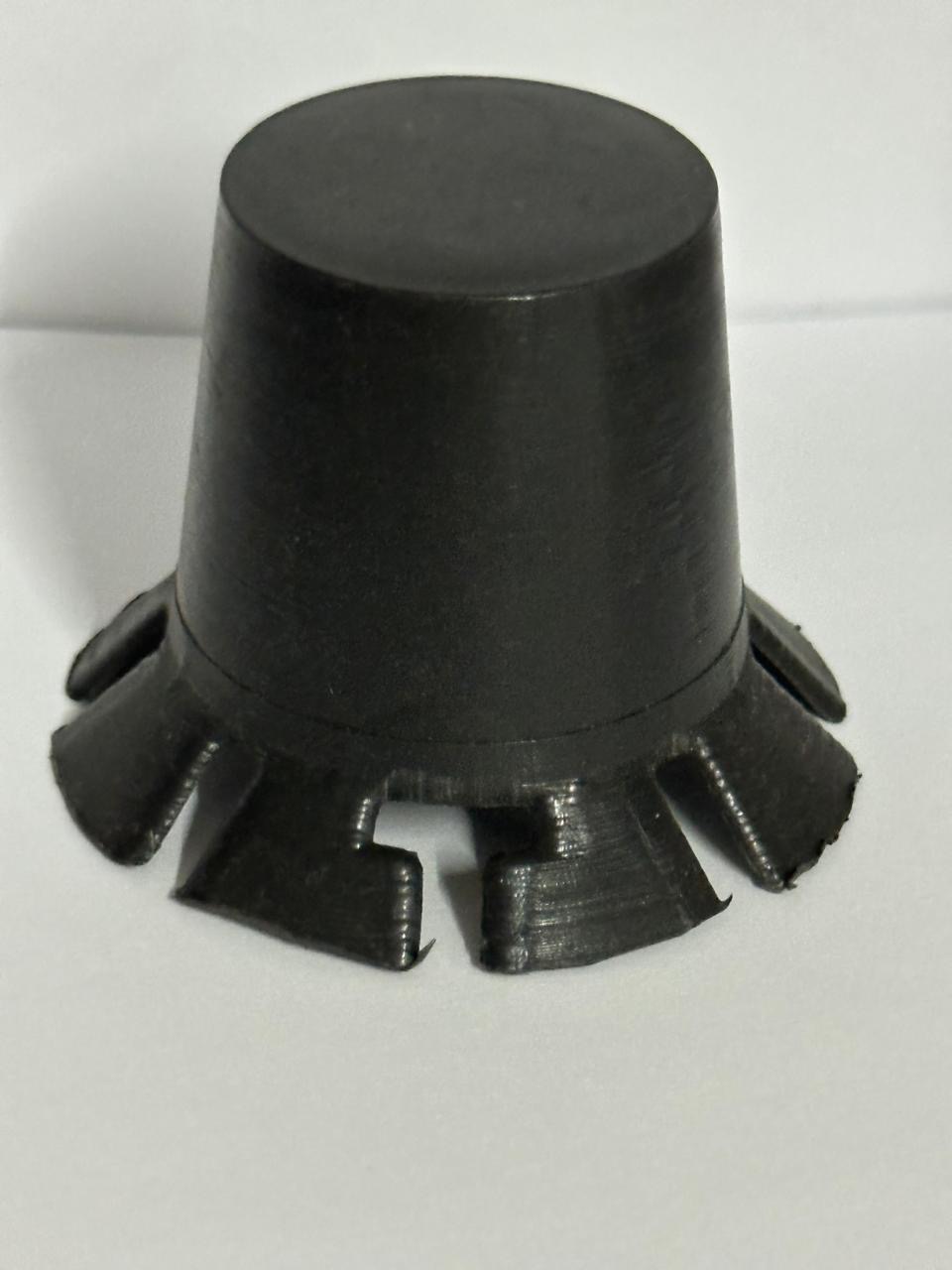

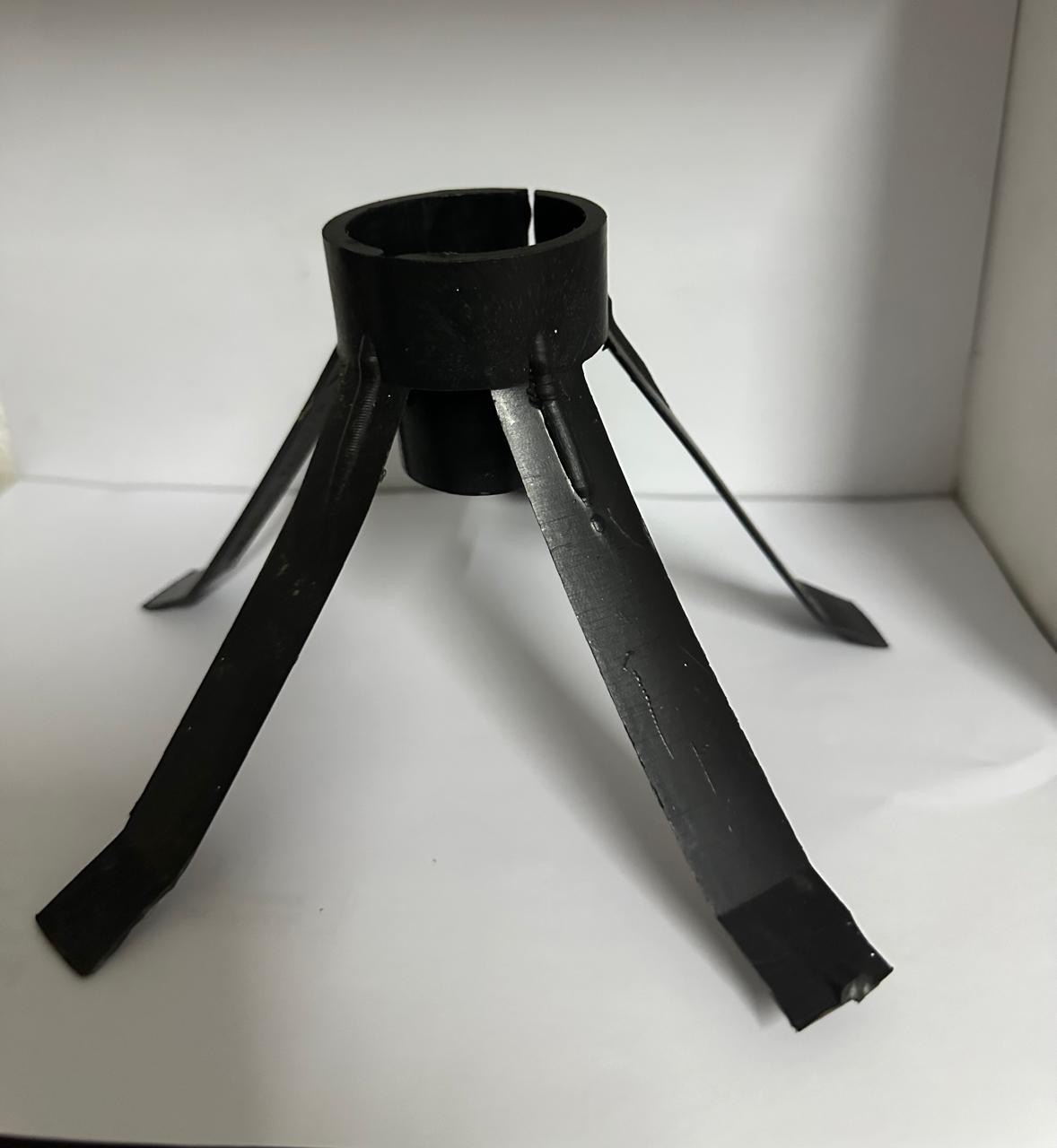

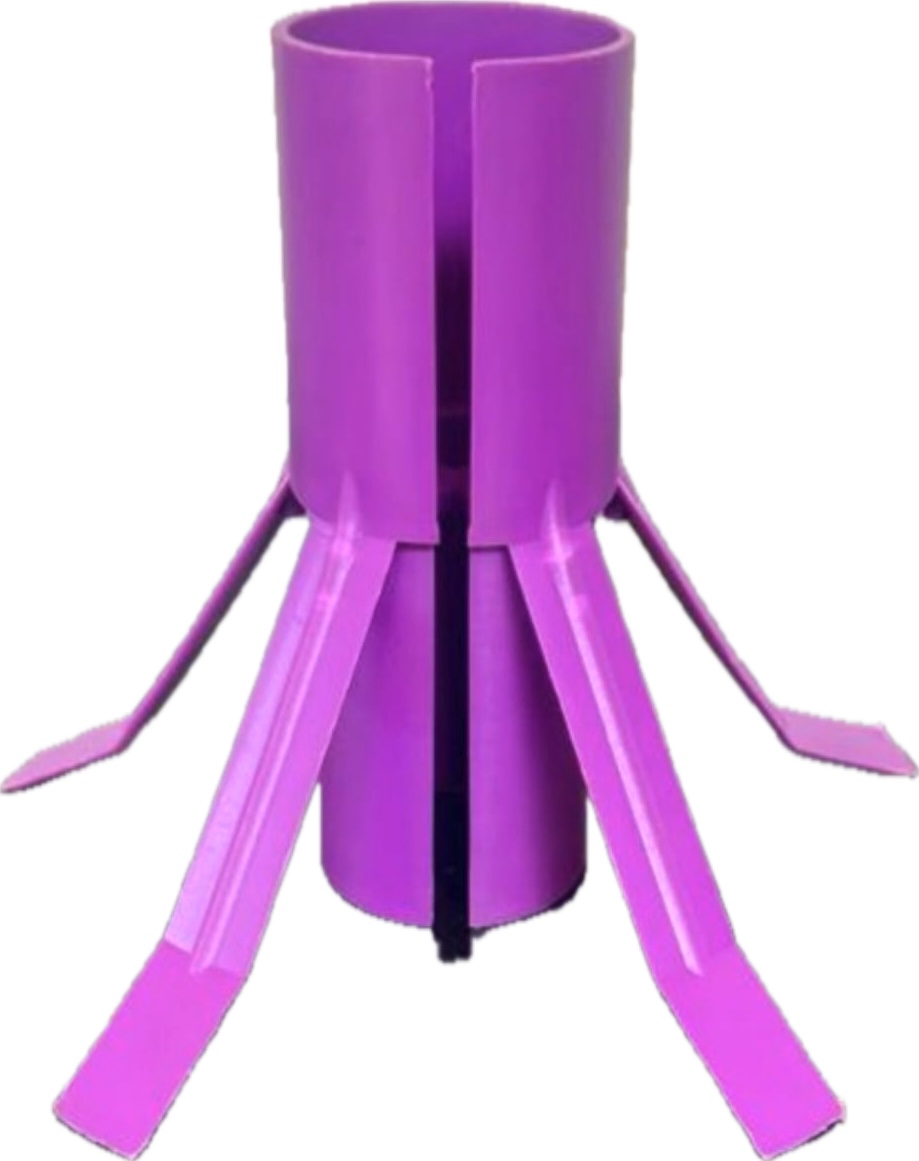

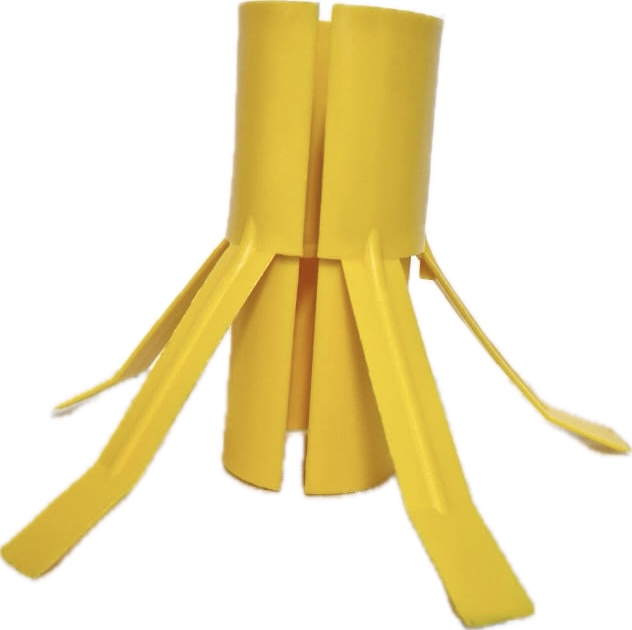

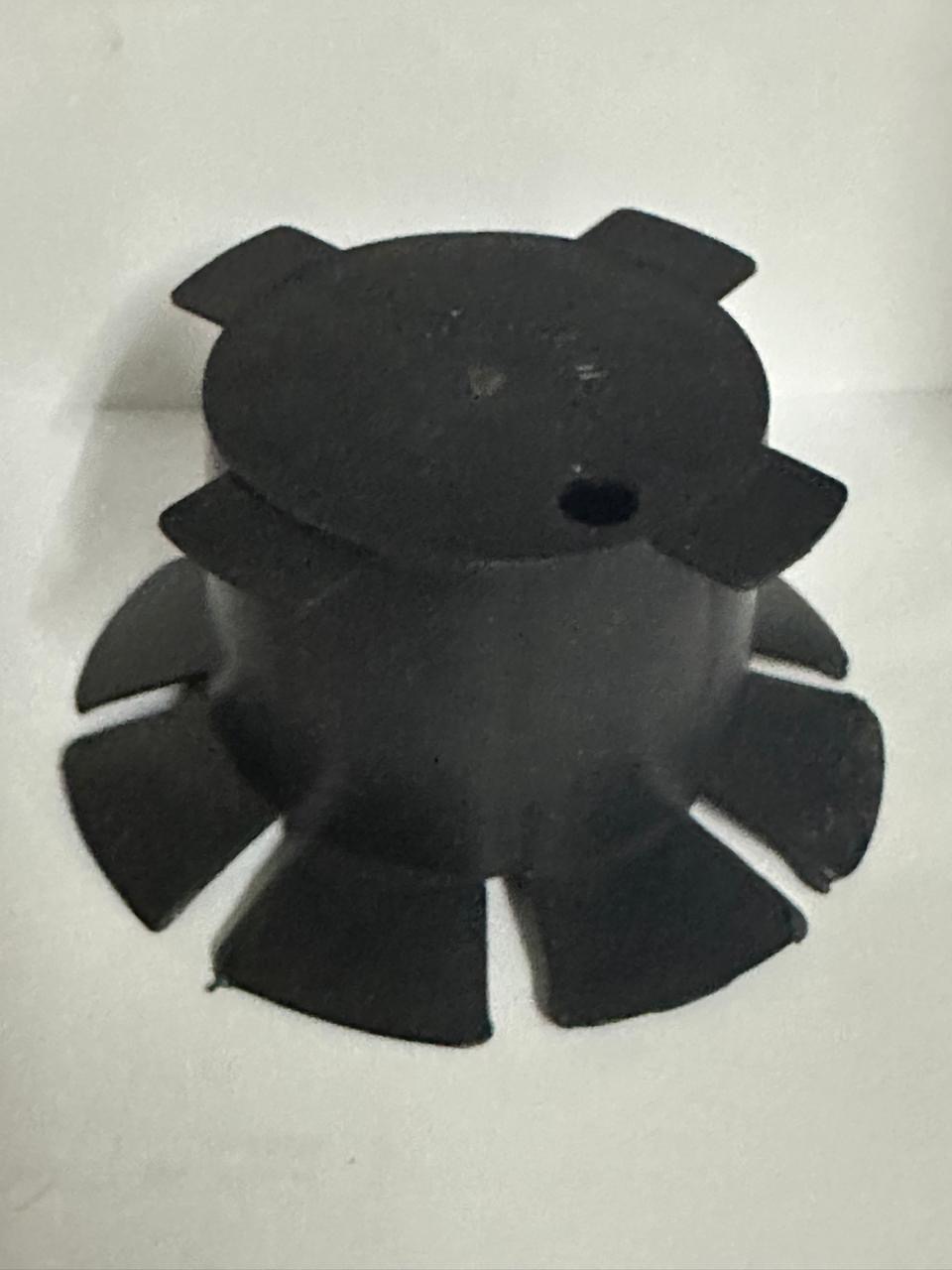

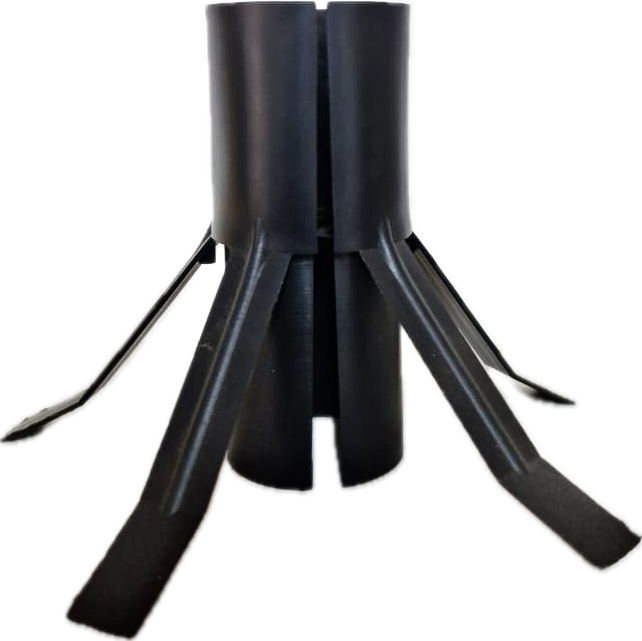

Underground Spider Plugs

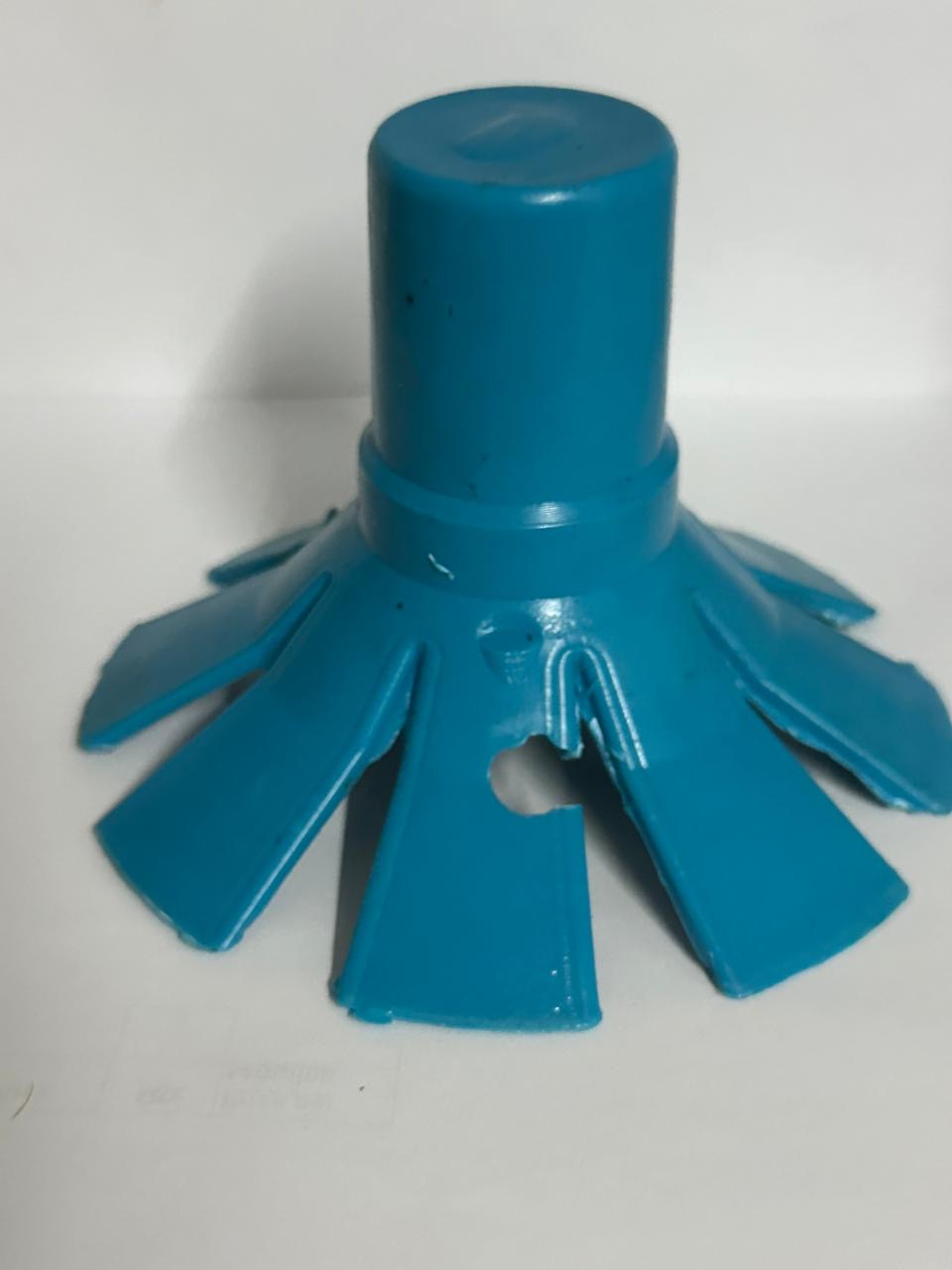

Spider Plugs
Spider plugs are indispensable tools in mining operations, designed to effectively seal drill holes during the charging process. These plugs prevent the leakage of emulsion or explosives, ensuring that the blast remains controlled and safe. Additionally, they provide crucial support for tamping, enhancing the overall efficiency and safety of blasting operations.
Available in a variety of sizes, our spider plugs are specifically engineered to accommodate different drill hole diameters, providing a secure fit for every job. Whether you are working with large or small holes, our spider plugs offer superior sealing and taping stork stemming capabilities, reducing the risk of contamination and ensuring a consistent blast performance.

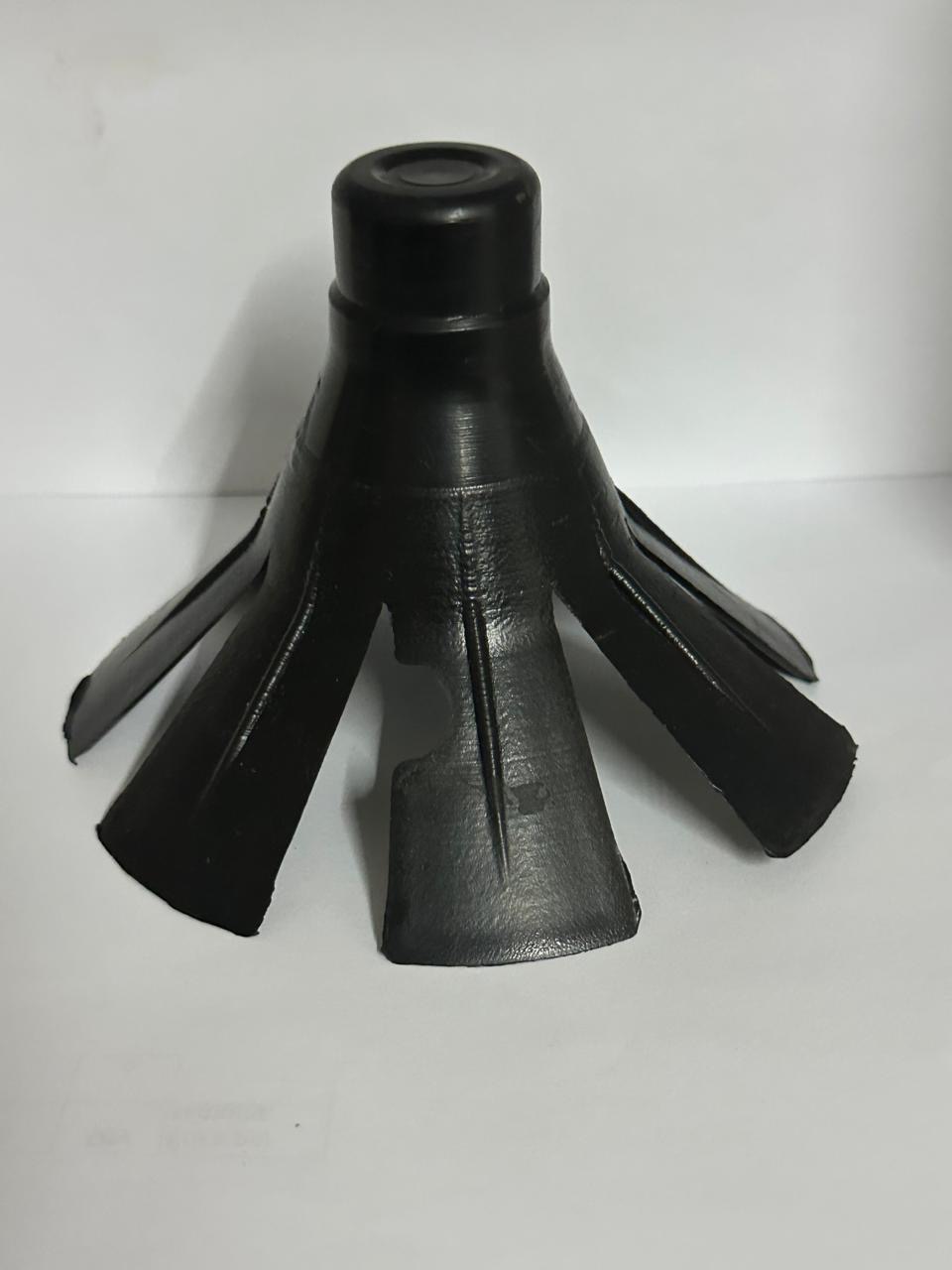

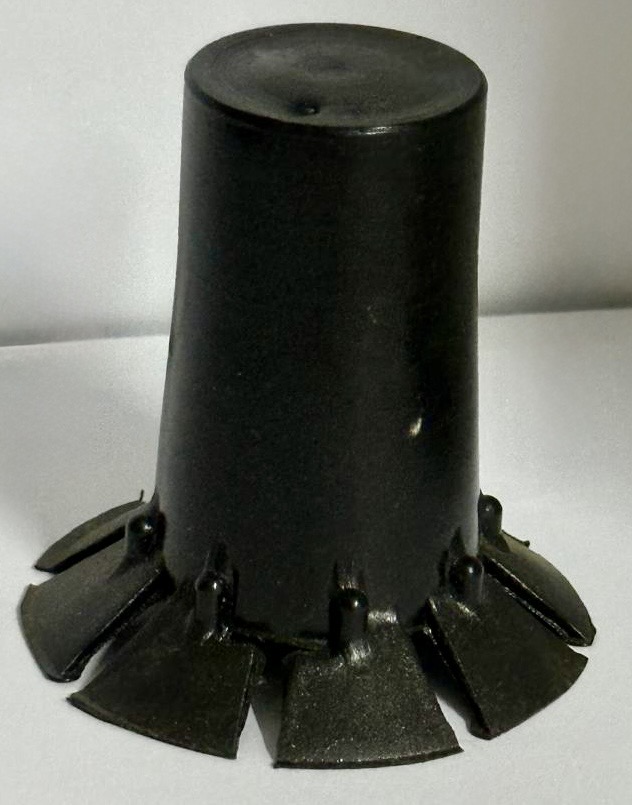

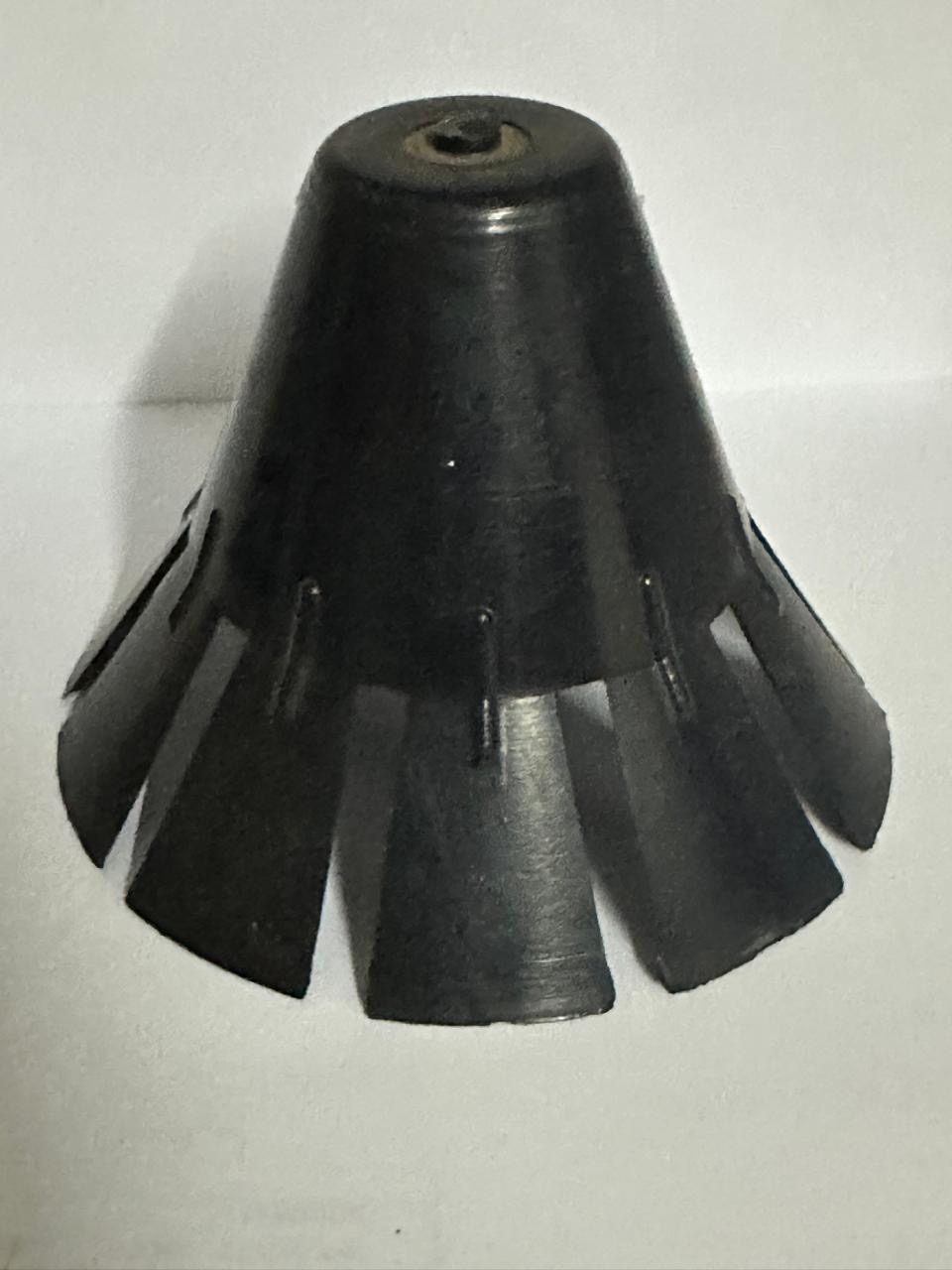

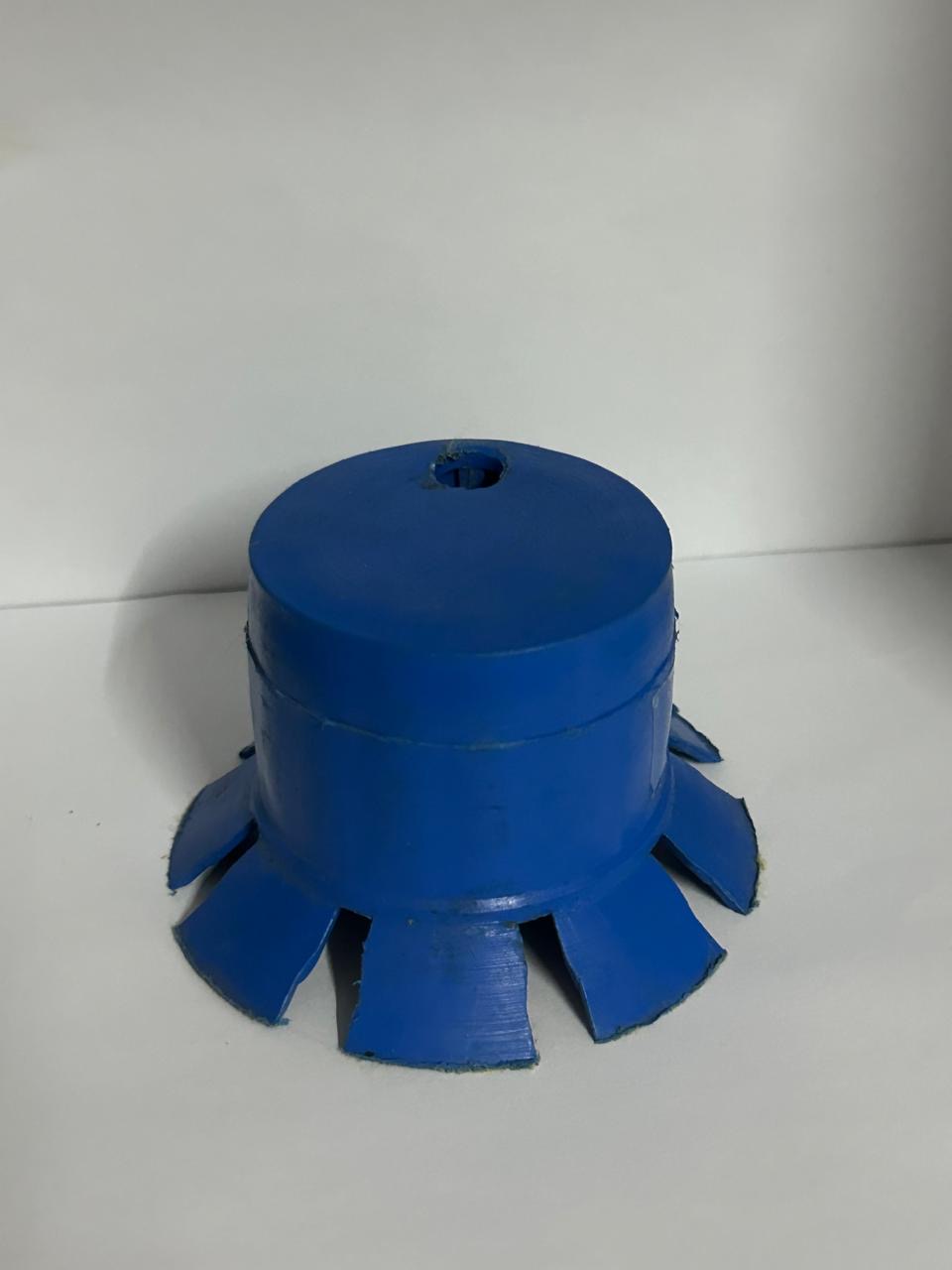

Open Pit Genie Plugs

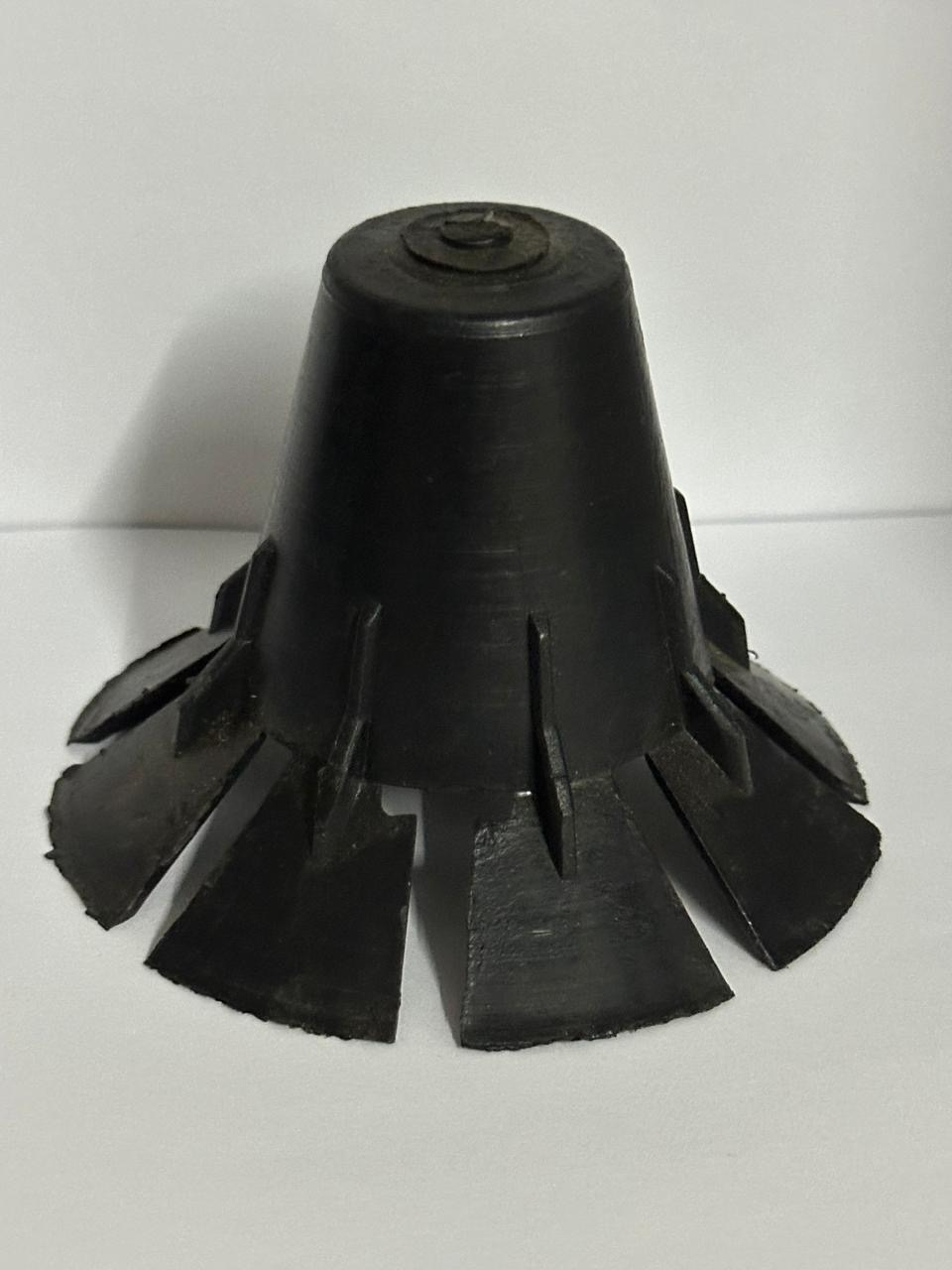

Open-Pit Genie Plug
The Open Pit Genie Plug is an innovative, multi-purpose tool designed for open-pit mining operations. Engineered to simplify and optimise the blast hole loading process, this plug functions as a stemming plug, booster holder, and cavity plug all in one durable unit.
These plugs are compatible with drill hole diameters of 140 mm and 127 mm, providing a secure and efficient fit. The booster holder accommodates both 250 g and 400 g boosters, ensuring reliable positioning and consistent blast initiation. Additionally, when used as a cavity plug at the bottom of the hole, it stabilises the column and enhances the overall safety and performance of blasting operations. By combining multiple functions into a single product, the Open Pit Genie Plug reduces preparation time, material handling, and equipment needs while improving safety and control. Its rugged design ensures dependable performance in demanding open-pit environments.
Whether used for stemming, booster placement, or cavity sealing, the Open Pit Genie Plug delivers versatility, efficiency, and precision a true all-in-one solution for professional blasting operations.
Products
Charged Tipped Nozzle
Charged tipped nozzles are specialised tools used in mining to precisely direct and control the flow of explosive materials or other agents into drill holes. Designed for high-pressure environments, they ensure safe and efficient charging by minimising spillage and providing accurate material placement. Constructed from durable materials, these nozzles are available in various sizes to accommodate different drill hole diameters, improving operational efficiency and safety. These nozzles are essential for precise and controlled blasting operations.

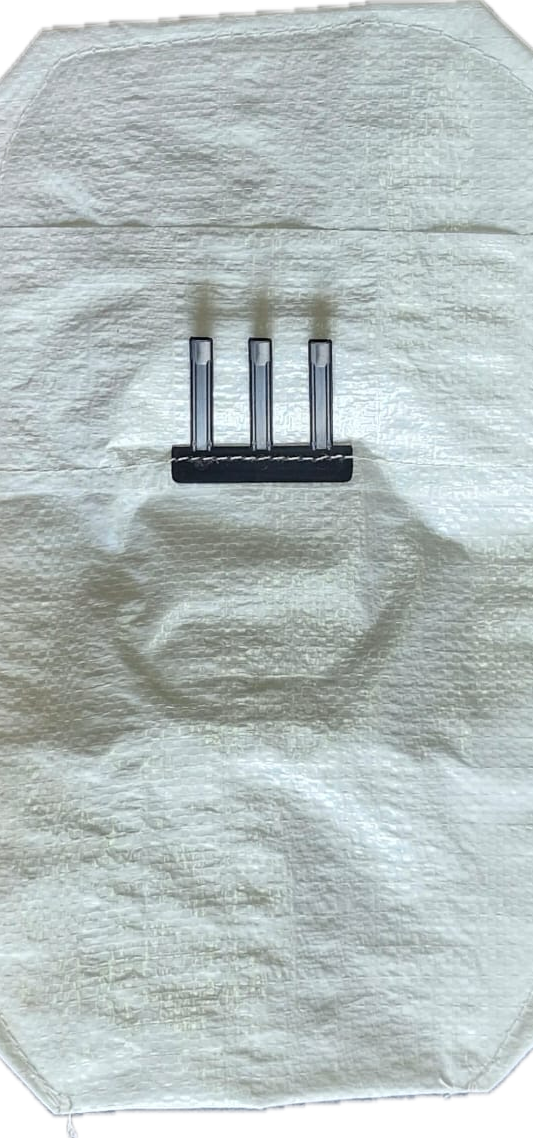

Emulsion Concussion Bags

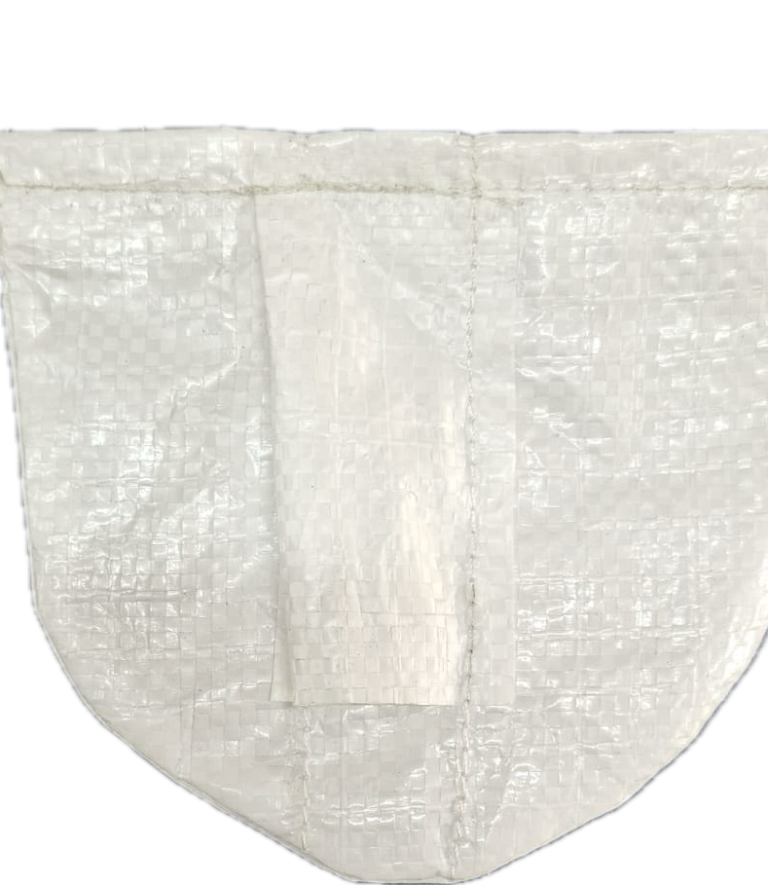

Emulsion concussion bags are used in mining operations to enhance blasting safety and effectiveness. These bags create a protective barrier between explosives and moisture, preventing contamination and ensuring consistent detonation. They help maintain the integrity of the explosives by reducing the risk of leaching or misfires in wet conditions . Easy to deploy, emulsion concussion bags improve operational efficiency, streamline the charging process, and reduce costs. They are also crucial for meeting environmental standards by containing explosives and minimising leakage, making them an essential tool for safe and reliable blasting in challenging mining environments.

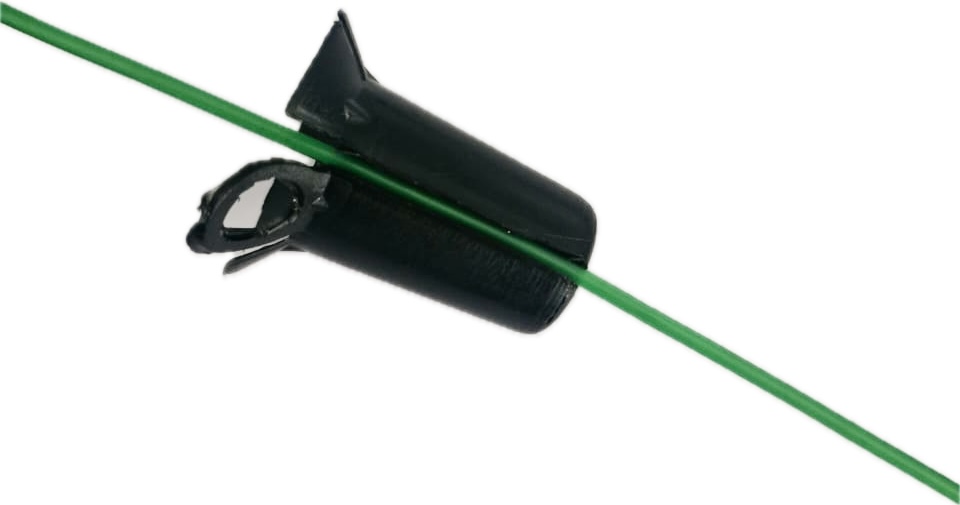

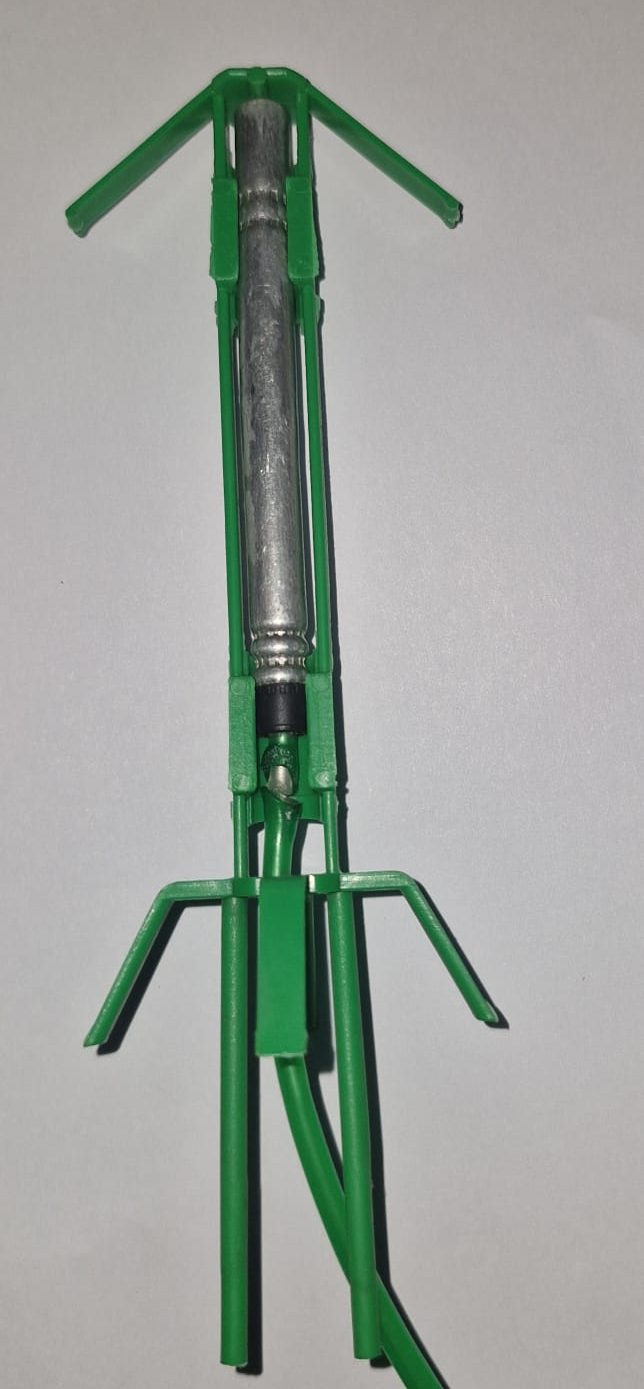

SH/FH Fuse Holder Centraliser
The SH/FH Fuse Holder Centraliser is designed to securely position and stabilise fuse holders in mining and explosive handling systems. It ensures proper alignment, preventing movement during installation and operation, which is essential for reliable detonation and safety. This centraliser reduces the risk of misfires by keeping fuse holders securely in place.
Made from durable materials, the SH/FH Fuse Holder Centraliser is built to withstand harsh mining environments. It offers long-term reliability, is easy to install into existing systems, and improves the safety and efficiency of blasting operations by ensuring precise fuse placement for controlled detonations.
Charging Lance
A charging lance is a critical tool in mining operations used to safely and efficiently deliver explosives into drill holes. It is designed to provide precise placement of explosive materials, ensuring a controlled and accurate charging process. Typically available in various lengths to accommodate different hole lengths, charging lances are built to withstand the harsh conditions of mining environments, offering durability and reliability. They reduce the risk of accidents by providing a safer means of handling explosives, minimising direct contact with dangerous materials. With their robust construction and ease of use, charging lances enhance operational efficiency and safety during blasting operations.

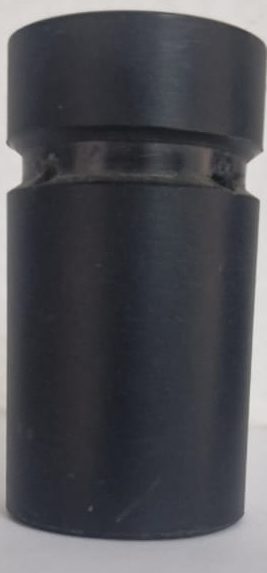

Blasting Capsule/ Booster Protector
A Blasting Capsule is used to place and protect the booster in a hole the booster is placed. Once the explosive is placed, the capsule is positioned to ensure the detonator stays in place, preventing movement and ensuring a controlled blast. It also protects the boosters and detonator from external factors like moisture and external damage, ensuring reliable initiation. Designed to meet industry safety standards, Blasting Capsules help enhance safety and efficiency during blasting operations.
Tubular Liner / Sleeves
Tubular liners are cylindrical protective sleeves designed to be inserted into drill holes, primarily in mining, geotechnical, and construction applications. They serve to preventing seeping and contamination, while also providing a clean, stable passage for instruments or explosives. These liners are especially useful in loose or unstable ground conditions.
Liners can be custom-made to specific lengths and colour based on the requirements of each individual drill hole. This flexibility allows for precise fitting and optimal performance, minimising waste and improving safety. Typically made from durable, corrosion and chemical resistant materials.
Ball Bags
The Ball Bag is an essential tool used in blasting operations to ensure effective blast control and prevent surface flyrock. It is typically filled with material such as drill chippings, sand or aggregate, and placed in the blast hole above the explosive charge. This helps contain the energy from the blast and directs it into the rock for optimal fragmentation. Ball Bags can also be filled with explosives and placed in problematic areas where it's used to break hanging rock or breaking rocks in crusher.
After the explosives are loaded into the blast hole, the Ball Bag is carefully placed on top of the charge. Its primary function is to absorb and control the blast pressure, preventing it from dispersing outward and causing potential hazards such as flyrock. This containment ensures that the blast energy is focused on breaking the rock, enhancing the efficiency of the operation.

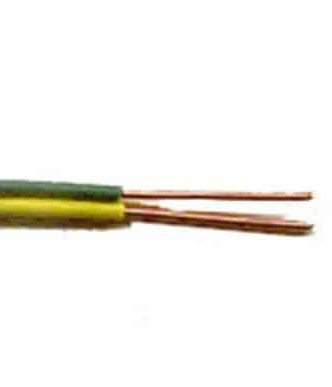

Copper Blasting Wire
Blasting wire is a durable, insulated wire used to safely transmit electrical current from a blasting machine to detonators in explosives. It’s essential in mining, construction, and demolition for controlled and accurate detonations.
Different options available
- 0.50mm - Options
- 0.60mm - Options
- 0.63mm - Options
- 0.69mm - Options
- 3/0.69mm - Options
- 0.86mm - Options
- 3/0.86mm - Options
Blasting Wire
0.50mm Ripcord
Blasting wire is a durable, insulated wire used to safely transmit electrical current from a blasting machine to detonators in explosives. It’s essential in mining, construction, and demolition for controlled and accurate detonations.
0.50mm Ripcord Specification
- Old imperial size: 25gge
- Wire Conductor Size: 0.50mm
- PVC covering: 0.25mm
- Outside diameter: 1.0mm
- Area of wire conductor Sq. mm: 0.196mmsq
- Resistance of annealed wire conductor: 87.97OHMS (1000m)
- Mass per 100m coil: 0.575Kg
- Standard colours: white
Available in:
- Coils of 15 - 300 meters
- Reels of 100 - 500 meters
Blasting Wire
0.60mm Single
Blasting wire is a durable, insulated wire used to safely transmit electrical current from a blasting machine to detonators in explosives. It’s essential in mining, construction, and demolition for controlled and accurate detonations.
0.60mm Single Specification
- Old imperial size: 23gge
- Wire Conductor Size: 0.60mm
- PVC covering: 0.25mm
- Outside diameter: 1.1mm
- Area of wire conductor Sq. mm: 0.282mmsq
- Resistance of annealed wire conductor: 61.14OHMS (1000m)
- Mass per 100m coil: 0.341Kg
- Standard colours: yellow or green
Available in:
- Coils of 100 - 300 meters
- Reels of 200 - 500 meters
Blasting Wire
0.60mm Single
Blasting wire is a durable, insulated wire used to safely transmit electrical current from a blasting machine to detonators in explosives. It’s essential in mining, construction, and demolition for controlled and accurate detonations.
0.63mm Single Specification
- Old imperial size: 23gge
- Wire Conductor Size: 0.60mm
- PVC covering: 0.25mm
- Outside diameter: 1.1mm
- Area of wire conductor Sq. mm: 0.282mmsq
- Resistance of annealed wire conductor: 125.95OHMS (1000m)
- Lay length: +/- 130mm
- Mass per 100m coil: 0.715Kg
- Standard colours: yellow and green
Available in:
- Coils of 15 - 300 meters
- Reels of 100 - 500 meters
Blasting Wire
0.63mm Single
Blasting wire is a durable, insulated wire used to safely transmit electrical current from a blasting machine to detonators in explosives. It’s essential in mining, construction, and demolition for controlled and accurate detonations.
0.63mm Single Specification
- Wire Conductor Size: 0.63mm
- PVC covering: 0.25mm
- Outside diameter: 1.13mm
- Area of wire conductor Sq. mm: 0.312mmsq
- Resistance of annealed wire conductor: 55.29OHMS (1000m)
- Mass per 100m coil: 0.40Kg
- Standard colours: yellow or green
Available in:
- Coils of 100 - 300 meters
- Reels of 200 - 500 meters
Blasting Wire
0.63mm Twin
Blasting wire is a durable, insulated wire used to safely transmit electrical current from a blasting machine to detonators in explosives. It’s essential in mining, construction, and demolition for controlled and accurate detonations.
0.63mm Twin Specification
- Wire Conductor Size: 0.63mm
- PVC covering: 0.25mm
- Outside diameter: 1.13mm
- Area of wire conductor Sq. mm: 0.311mmsq
- Resistance of annealed wire conductor: 110.59 OHMS (1000m)
- Lay length: +/- 130mm
- Mass per 100m coil: 0.8Kg
- Standard colours: yellow and green
Available in:
- Coils of 15 - 300 meters
- Reels of 100 - 500 meters
Blasting Wire
3/0.69mm Single
Blasting wire is a durable, insulated wire used to safely transmit electrical current from a blasting machine to detonators in explosives. It’s essential in mining, construction, and demolition for controlled and accurate detonations.
3/0.69mm Single Specification
- Old Imperial Size: 3/22gge
- Wire Conductor Size: 3 strands of 0.69mm
- PVC covering: 0.5mm
- Outside diameter: 2.60mm
- Combined Sq. mm of 3 stands: 1.122mmsq
- Resistance of annealed wire conductor: 15.36OHMS (1000m)
- Mass per 100m coil: 1.673Kg
- Standard colour: red or black
Available in:
- Coils of 50 - 300 meters
Blasting Wire
3/0.69mm Twin
Blasting wire is a durable, insulated wire used to safely transmit electrical current from a blasting machine to detonators in explosives. It’s essential in mining, construction, and demolition for controlled and accurate detonations.
3/0.69mm Twin Specification
- Old Imperial Size: 3/22gge
- Wire Conductor Size: 3 strands of 0.69mm
- PVC covering: 0.5mm
- Outside diameter: 2.60mm
- Combined Sq. mm of 3 stands: 1.122mmsq
- Resistance of annealed wire conductor: 31.65OHMS (1000m)
- Lay length: +/- 130mm
- Mass per 100m coil: 3.433Kg
- Standard colour: red and black
Available in:
- Coils of 50 - 300 meters
Blasting Wire
0.69mm Single
Blasting wire is a durable, insulated wire used to safely transmit electrical current from a blasting machine to detonators in explosives. It’s essential in mining, construction, and demolition for controlled and accurate detonations.
0.69mm Twin Specification
- Old Imperial Size: 22gge
- Wire Conductor Size: 0.69mm
- PVC covering: 0.36mm
- Outside diameter: 1.41mm
- Area of wire conductor Sq. mm: 0.374mmsq
- Resistance of annealed wire conductor: 46.10 OHMS (1000m)
- Mass per 100m coil: 0.477Kg
- Standard colour: red or black
Available in:
- Coils of 15 - 300 meters
- Reels of 100 - 500 meters
Blasting Wire
0.69mm Twin
Blasting wire is a durable, insulated wire used to safely transmit electrical current from a blasting machine to detonators in explosives. It’s essential in mining, construction, and demolition for controlled and accurate detonations.
0.69mm Twin Specification
- Old Imperial Size: 22gge
- Wire Conductor Size: 0.69mm
- PVC covering: 0.36mm
- Outside diameter: 1.41mm
- Area of wire conductor Sq. mm: 0.374mmsq
- Resistance of annealed wire conductor: 94.96 OHMS (1000m)
- Mass per 100m coil: 1.008Kg
- Standard colour: red and black
Available in:
- Coils of 15 - 300 meters
- Reels of 100 - 500 meters
Blasting Wire
0.86mm Single
Blasting wire is a durable, insulated wire used to safely transmit electrical current from a blasting machine to detonators in explosives. It’s essential in mining, construction, and demolition for controlled and accurate detonations.
0.86mm Single Specification
- Old imperial size: 20gge
- Wire conductor size: 0.86mm
- PVC covering: 0.36mm
- Outside diameter: 1.58mm
- Area of wire conductor Sq mm: 0.58mmsq
- Resistence of annealed wireconductor: 29.72OHMS (1000m)
- Mass per 100m coil: 0.79Kg
- Standard colours: yellow or green
Blasting Wire
0.86mm Twin
Blasting wire is a durable, insulated wire used to safely transmit electrical current from a blasting machine to detonators in explosives. It’s essential in mining, construction, and demolition for controlled and accurate detonations.
0.86mm Twin Specification
- Old imperial size: 20gge
- Wire conductor size: 0.86mm
- PVC covering: 0.36mm
- Outside diameter: 1.58mm
- Area of wire conductor Sq. mm: 0.58mmsq
- Resistance of annealed wire conductor: 61.22OHMS loop resistance (1000m)
- Mass per 100m coil: 1.45Kg
- Standard colours: yellow and green
Blasting Wire
3/0.86mm Single
Blasting wire is a durable, insulated wire used to safely transmit electrical current from a blasting machine to detonators in explosives. It’s essential in mining, construction, and demolition for controlled and accurate detonations.
3/0.86mm Twin Specification
Specifications on request
Blasting Wire
3/0.86mm Twin
Blasting wire is a durable, insulated wire used to safely transmit electrical current from a blasting machine to detonators in explosives. It’s essential in mining, construction, and demolition for controlled and accurate detonations.
3/0.86mm Twin Specification
Specifications on request
